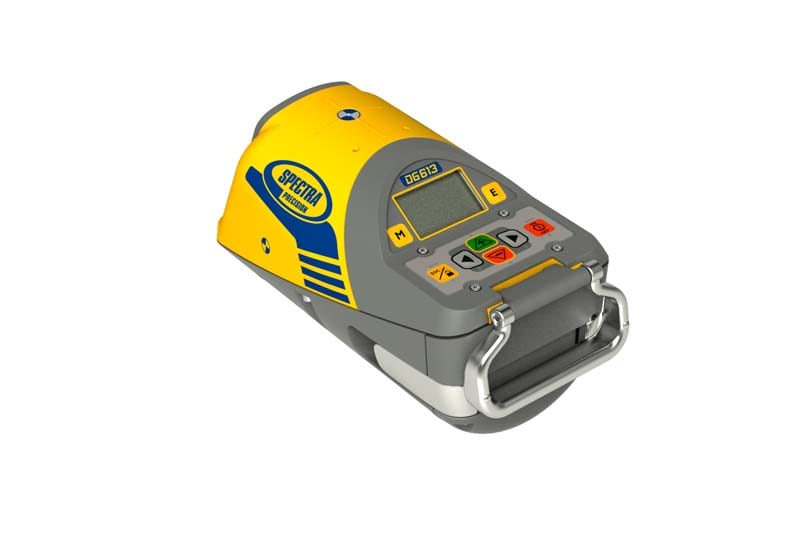

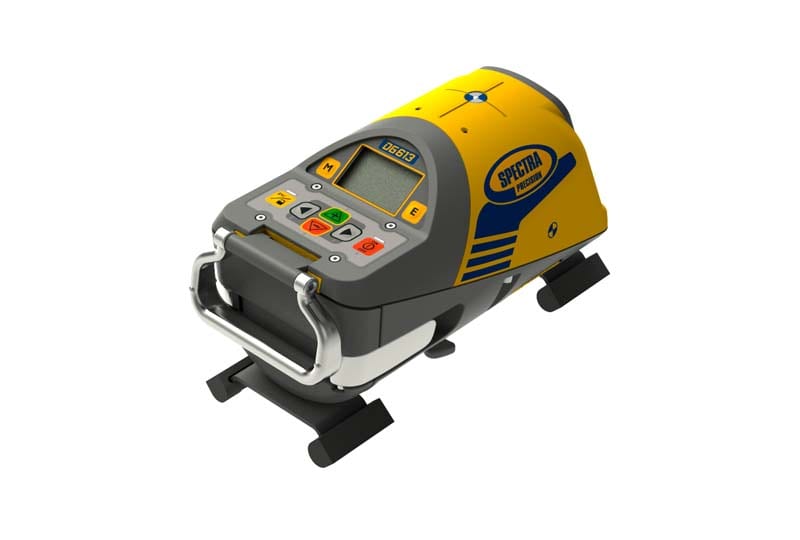

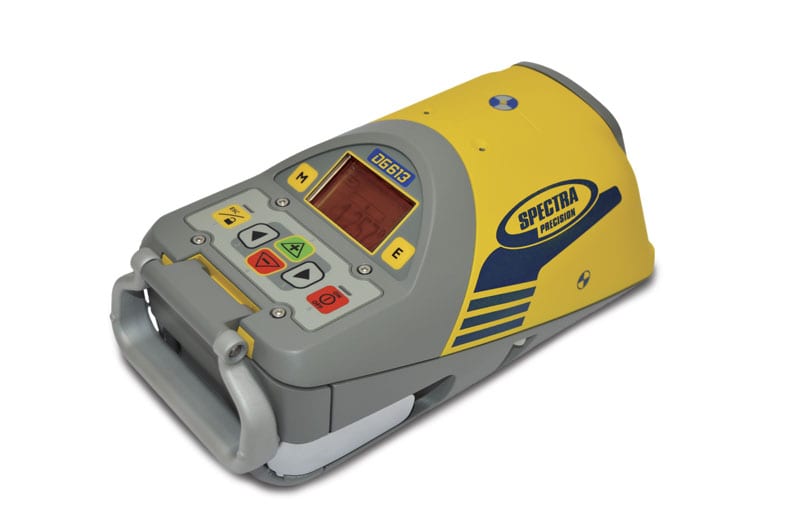

Overview for the Spectra Precision DG613 Red Beam Pipe Laser

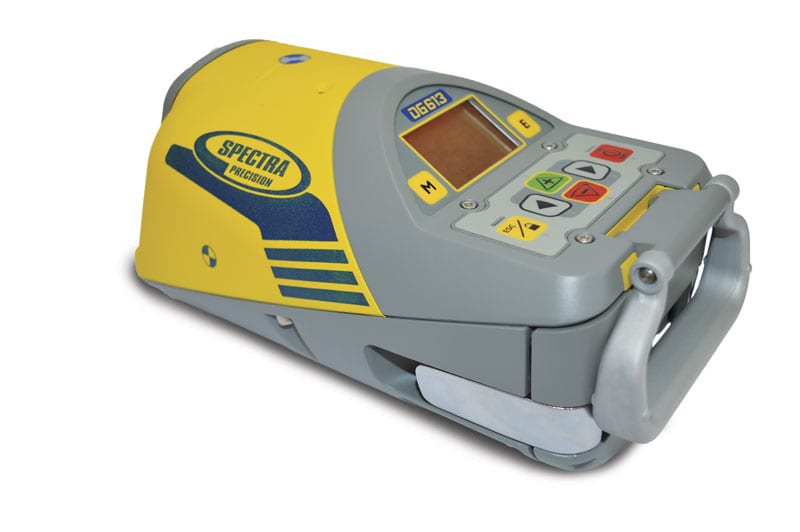

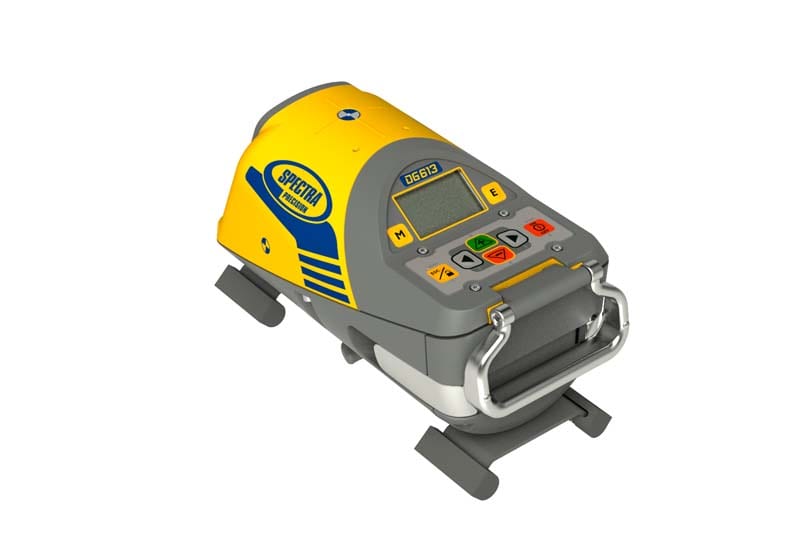

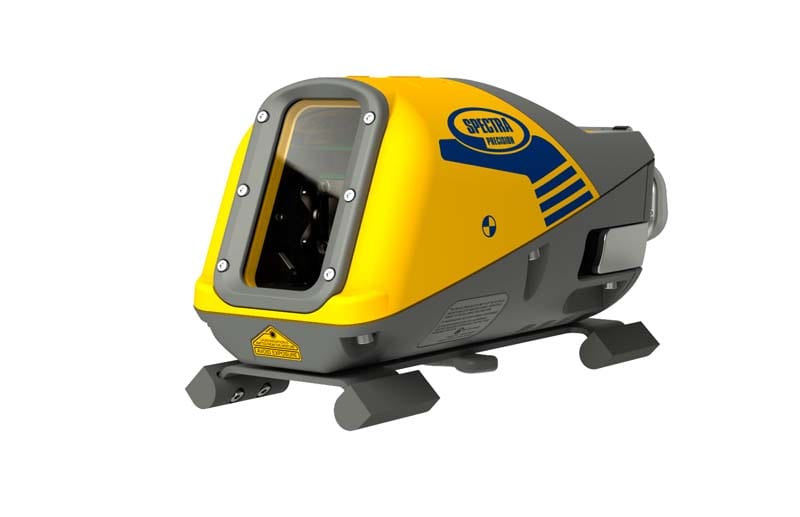

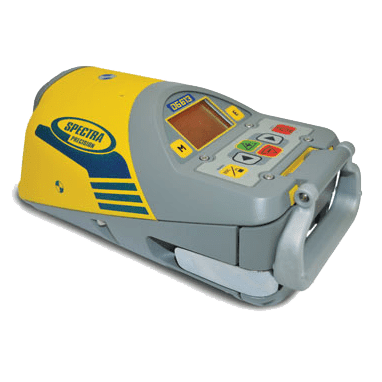

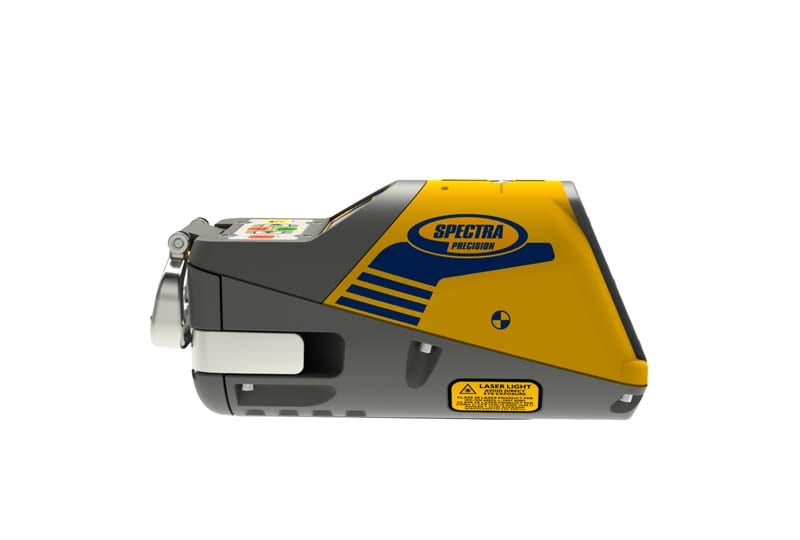

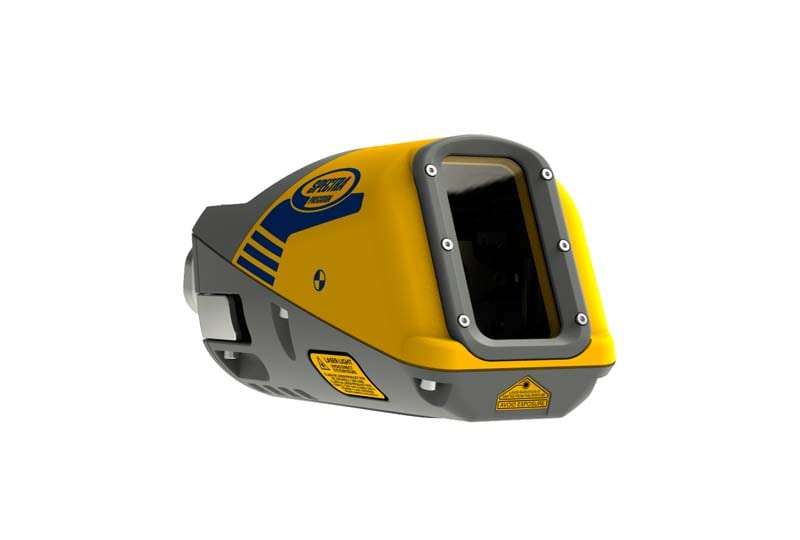

The Spectra DG613 Red Beam Pipe Laser is an efficient construction tool that features a fully self-leveling grade range of -12% to +40% with around ±10 arc second accuracy. Its cross axis is fully compensated to provide fast set up that the laser will accurately level without adjusting the bottom of the invert. This laser boasts functions such as line centering, line set, and line alert which simplify setting and resetting the vertical line or even the grade on its display.

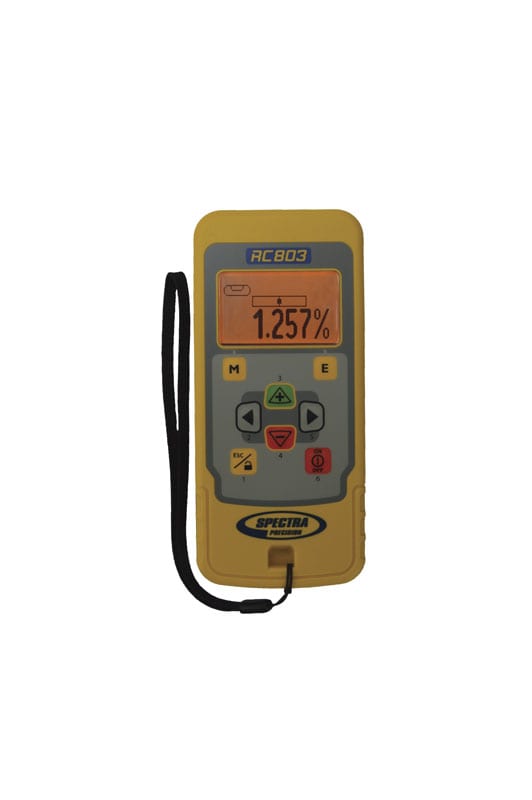

The DG613 pipe laser works over a distance of 500 feet using the RC803 remote control, providing full operation in a single set-up task. This remote control provides full-function control and utilizes infra-red light inside the pipe and enables radio communication up to a distance of 430 feet. It also features manual grade entry, line scan, start reference check, and standby mode. In addition, alignment markers, a LED plumb light, and a reflective target on top of the device all assist in setting the desired line.
Outlined with a large LCD display and a color-coded keypad, the DG613 provides 40 hours operating time with NiMH rechargeable batteries and 50 hours with alkaline batteries. It has the ability to place standard D batteries in the laser, without a battery pack, so you can still use the laser while the NiMH batteries charge. Built for any tough job, the laser’s IP68 protection makes it dust resistant and water submersible up to 10 feet and comes with a 5-year manufacturer’s warranty.
Configuration Options
The Spectra DG613 Red Beam Pipe Laser comes in four packages to accommodate every surveyor’s needs. Please select your package from the drop-down menu above.
| Package | Additional Components |
| Standard (DG613) |
|
| Vertical Pole Assembly (DG613-5) |
|
| Vertical Pole Assembly Metric (DG613-6) |
|
| Over-the-Top (DG613-13) |
|
Features for the Spectra Precision DG613 Red Beam Pipe Laser
- Choice of packages
- Range up to 430 feet above and 500 feet inside pipes
- ±10 arc second accuracy
- Self-leveling range from -12% to +40%
- Fully-compensated cross axis
- Line scan and line alert features
- Line centering, line set, and line alert functions
- Start reference check
- Standby mode
- LED plumb light
- Manual grade entry
- IP68 dustproof and water immersible beyond 1m
- Waterproof up to 10 feet
- Large LCD display and color-coded keypad
- Battery life up to 40 hours using NiMH battery pack
- RC803 remote control included
- 5-year manufacturer’s warranty
