2D Grader

מערכת לשליטה על עבודות החלקה (grading), חוסכת בזמן, עלויות החומר ומעלה את רמת הבטיחות בשטח

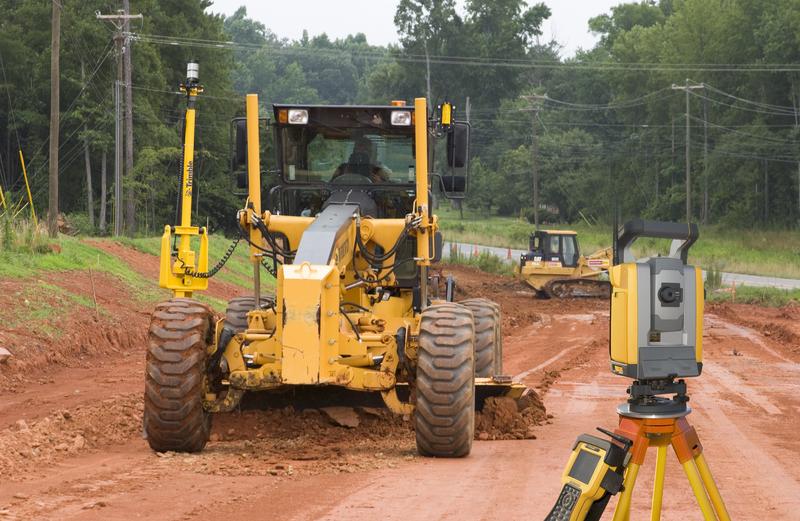

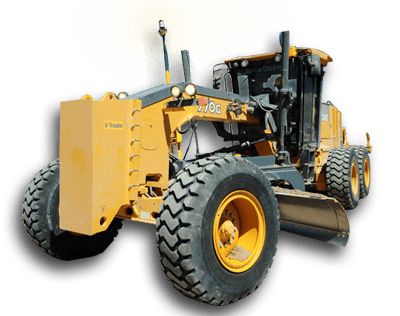

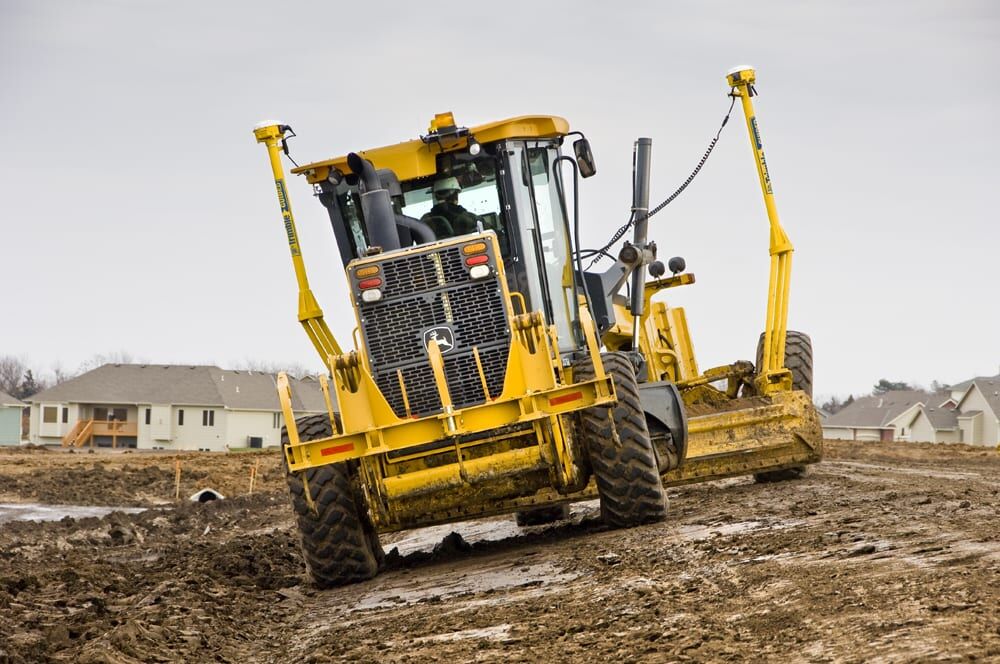

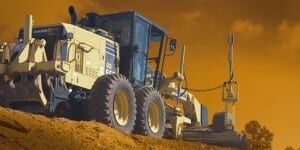

The Trimble 2D GCS900 Grade Control System for motor graders is an excellent first investment for contractors new to construction technology.

GCS900 2D for motor graders grading.

Grading

  • Measure the lift and tilt of the blade with a single laser and laser receiver
  • Measure the slope of the blade by adding another laser receiver or a slope sensor
  • Get to grade more accurately and quickly with in-cab elevation and slope guidance
  • Upgrade to a 3D grade control system as your organization grows

Finished grade

  • Achieve tight tolerances and a smooth finished grade with precise vertical guidance.
  • Calculate the cross-slope of the blade using two angle sensors and a rotation sensor
  • Add a laser receiver or a sonic tracer to measure elevation
  • Trace stringline, previous pass, or curb and gutter with a sonic tracer

Using the 2D system with a sonic sensor or a grade laser to improve the efficiency and productivity of your motor grader on projects such as:

  • Road and highway projects
  • Land reclamation projects
  • Dam and reservoir construction
  • New infrastructure projects

Cross-slope only

  • Cross-slope control system to be used on motor graders for fine grading work for road maintenance, ditches and slope work

Single elevation plus cross-slope

  • Single control system uses a laser or sonic receiver to control the lift of the machine blade for flat, slopework and finished grading

Dual elevation

  • Dual control system that uses two laser or sonic receivers for higher accuracy lift control. Blade edge can be controlled independently or linked





SITECH, Machine Control:  מערכת לשליטה על כלים לייעול של של זמן, עלויות ודיוק

חברת Axis מציעה ציוד מדידה איכותי, מחפשת מכשיר מדידה שמתאים לצורכי מודד שטח. אצלנו תמצאו מגוון מכשירי מדידה למודדים וקבלנים, מערכות מידע גיאוגרפיות, כלים למיפוי, מכשירי ניווט, מיפוי אווירי, פוטוגרמטריה, פתרון לתצלומי אוויר,בתימטריה ופתרונות נוספים.

אצלנו תוכלו למצוא בין היתר: מכשירי GPS וקלטות, מערכות GIS, סורקי לייזר, רחפנים ותוכנות לעיבוד ענן נקודות, דיסטומטים (מד קואורדינטות), מיפוי בעזרת מציאות רבודה, כלים למיפוי ימי, מיפוי נע, מערכות שליטה על כלים, ניטור, תפרונות מיקום מתקדמים, רשת VRS, מאזנות אופטיות ולייזר ועוד.

GCS900 2D for motor graders grading.

Grading

  • Measure the lift and tilt of the blade with a single laser and laser receiver
  • Measure the slope of the blade by adding another laser receiver or a slope sensor
  • Get to grade more accurately and quickly with in-cab elevation and slope guidance
  • Upgrade to a 3D grade control system as your organization grows

Finished grade

  • Achieve tight tolerances and a smooth finished grade with precise vertical guidance.
  • Calculate the cross-slope of the blade using two angle sensors and a rotation sensor
  • Add a laser receiver or a sonic tracer to measure elevation
  • Trace stringline, previous pass, or curb and gutter with a sonic tracer

Using the 2D system with a sonic sensor or a grade laser to improve the efficiency and productivity of your motor grader on projects such as:

  • Road and highway projects
  • Land reclamation projects
  • Dam and reservoir construction
  • New infrastructure projects

Cross-slope only

  • Cross-slope control system to be used on motor graders for fine grading work for road maintenance, ditches and slope work

Single elevation plus cross-slope

  • Single control system uses a laser or sonic receiver to control the lift of the machine blade for flat, slopework and finished grading

Dual elevation

  • Dual control system that uses two laser or sonic receivers for higher accuracy lift control. Blade edge can be controlled independently or linked
