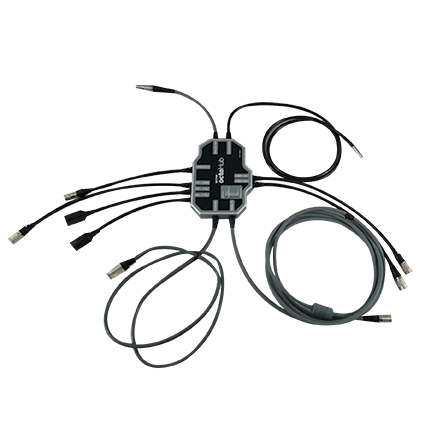

Trimble OctoHub

תכונות

• אות משופרת בסביבות אותות קשה
• תמיכה ברשתות GNSS הבאות: GPS, GLONASS, Galileo, Beidou, QZSS
• Jet Propulsion Laboratory
• דיוק פאזה 2 מ"מ ופחות ממילימטר בחזרה
• סינון LTE יפני

Features

• Improved signal reception in harsh signal environments
• Comprehensive GNSS support, including GPS, GLONASS, Galileo, Beidou, and QZSS
• Jet Propulsion Laboratory (JPL) Scientific Design
• Extensive precision rotation-testing: ensures 2 mm or better phase-center eccentricity and < 1mm phase-center repeatability
• Japanese LTE filtering

• This one-of- a-kind total station controller is a combination of a field computer, device server, router, cellular modem and remote switch
• By merging these items into one device, field set-up is quick and simple
• Data collection and storage is continuous; even when the internet connection is disrupted, measurement cycles will continue
• Free subscription to IST Connect Cloud Service simplifies central server connection
• Remote Total Station access delivers quick setup and configuration anytime

Overview

With the Settop M1 monitoring controller connected to a Trimble Total Station you will have the capability to quickly set-up for any monitoring applications, and receive reliable continuous data for decision making and reporting requirements. Working in conjunction with Trimble 4D Control software, the Settop dependably transfers data from the Total Station into T4D  to give you the data you need for monitoring in mining, buildings, dams and other structural monitoring applications.

Applications

The Settop M1 monitoring controller delivers high quality continuous data from a Trimble Total Station for the following:

• Construction Monitoring
• Structural Monitoring
• Slope Monitoring
• Mine Monitoring

Next steps

Control your total station through a simple to use setup with the Settop M1. Plug-in, and power, and you are ready to configure your next monitoring project. Read this article for more information on turning your total station into a real-time monitoring system.

Entry-level, cloud-based application for campaign based monitoring reporting

A cloud-based application designed for surveyors, engineers and scientists to perform campaign monitoring of data/time series without the need to integrate directly with onsite hardware and sensors.

• Periodic monitoring of any data time series
• User defined sensors and data
• Advanced visualization and analysis tool

• התקנת תחנה בקלות רבה
• מדידה של פנים קדימה ופנים אחורה ושמירת מדידות לביקורים עתידיים
• הוספת מקודות למסך ע"י מדידה, הכנסה ידנית (key in) או הכנסה מקבצי csv
• הדגרת פרמטרי מדידה כמו מרווח האפוק (epoch) ו- tolerance

Field software for configuring your monitoring projects

Trimble® Access™ continues to be the leading field software professional surveyors use around the world.

• Easily set up a station.
• Measure the backsight and all foresight targets and save their details to the job for subsequent site visits.
• Add points to monitor by measuring, keying in, or importing from a .csv file.
• Define measurement parameters such as epoch interval and tolerance.
